SERPENT AUTOSPORT

Wheel Accessories
Lug Nuts, Bolts, Studs, Wheel Spacers/Adapter

Phone or FAX: (818) 848-3681 / FAX Order Form

  E-MAIL:  charliedimarco@aol.com

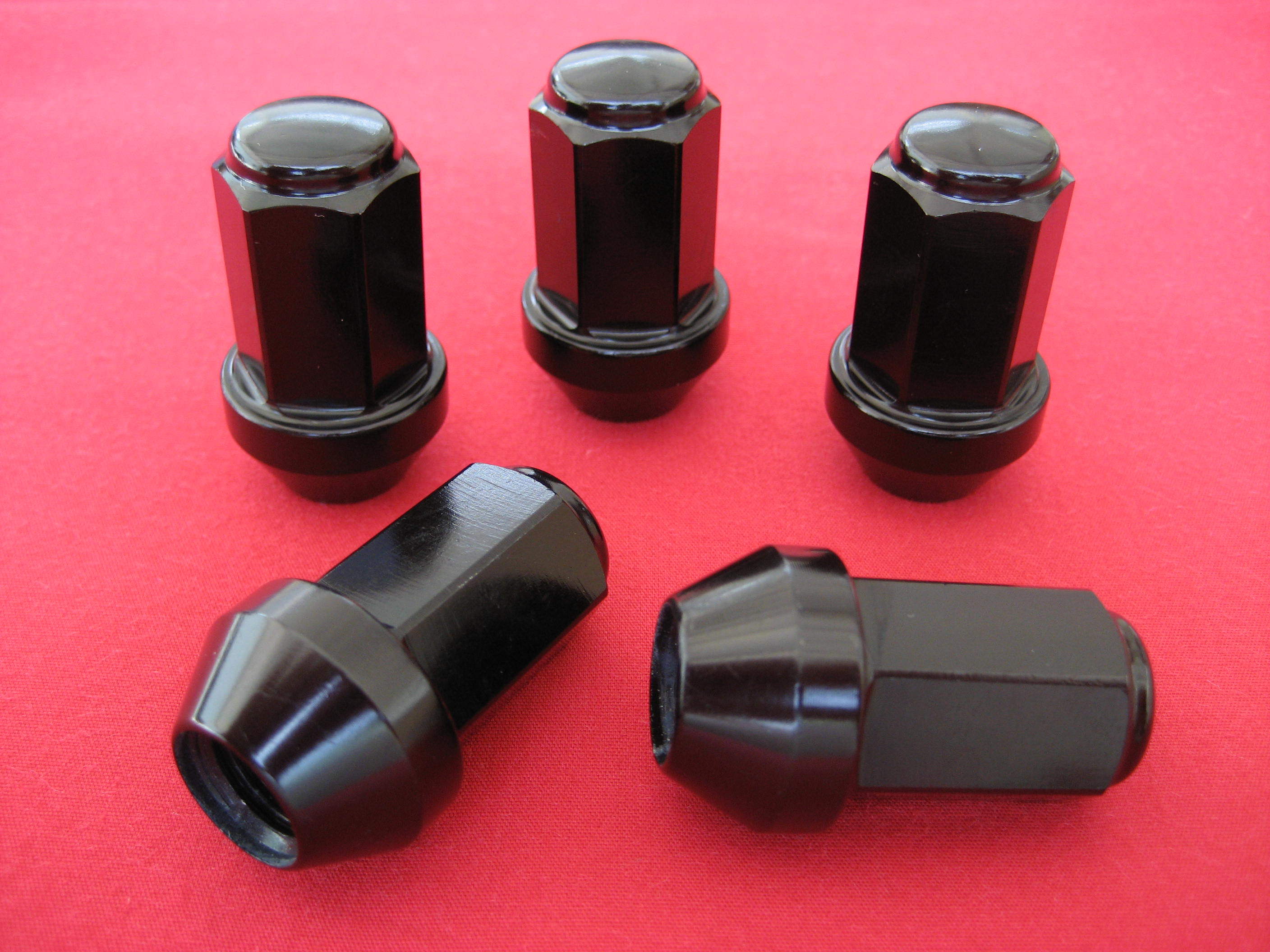

Aluminum Racing Lug Nuts

M12 x 1.5  17mm Hex

Black Anodized finish.

Each nut weighs 18.5 grams

Set of 16 $112.00                      Set of 20 $140.00

Made in Italy        TUV certified

Stainless Steel Lug Nuts

M12x1.5  22mm Hex

These stainless lug nuts will never rust or corrode.

Available in both right and left hand thread.

Set of 16 $120.00                      Set of 20 $150.00

Made in England        TUV certified

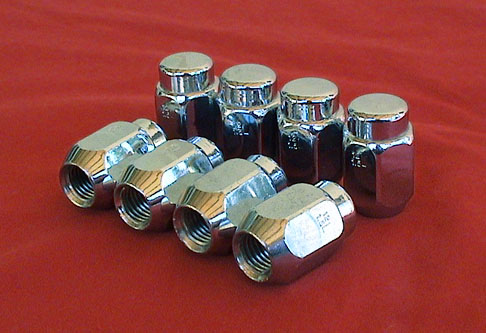

Left Hand Thread  Lug Nuts  for 105 cars

Acorn style left hand thread lug nuts for 105 series car that have not been converted. These lug nuts are LH 12mm x1.5 and are used when mounting  Serpent wheels or other aftermarket wheels to cars with left hand threaded lug studs.

Set of Left & Right Lug Nuts $39.00 (8 lefts,8 rights)

Now available in 1/2" for Plymouth, Chrysler, Willy's, etc.

Set of Left & Right Lug Nuts $50.00 (10 lefts,10 rights)

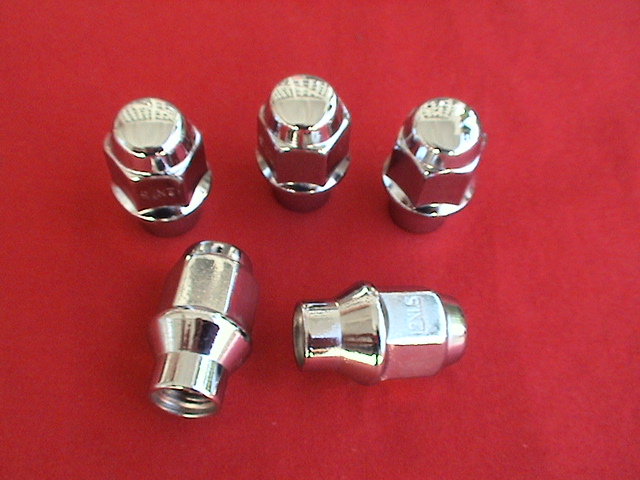

Made in Italy        TUV certified Bulge Cone Seat Lug Nut

Sizes available 12mm x 1.5, 12mm x 1.25    17 mm Hex

Set of 16 $32.00               Set of 20 $40.00



Extended Thread Lug Nut

Sizes available 12mm x 1.5, 12mm x 1.25M    19 mm Hex

Set of 16 $32.00             Set of 20 $40.00

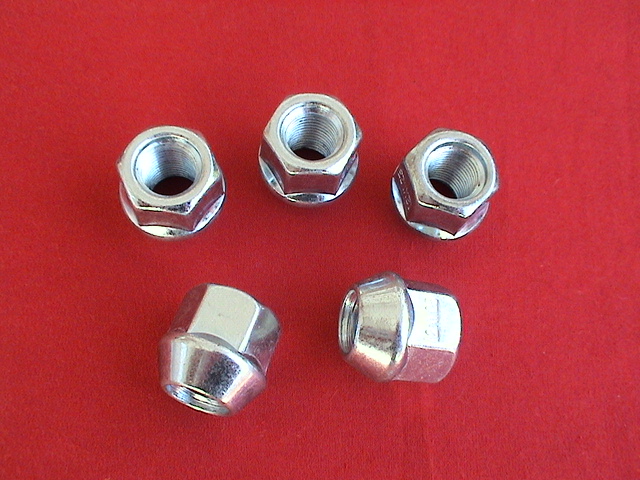

Open Bulge

Sizes available 12mm x 1.5, 12mm x 1.25

Set of 16 $16.00

Set of 20 $20.00

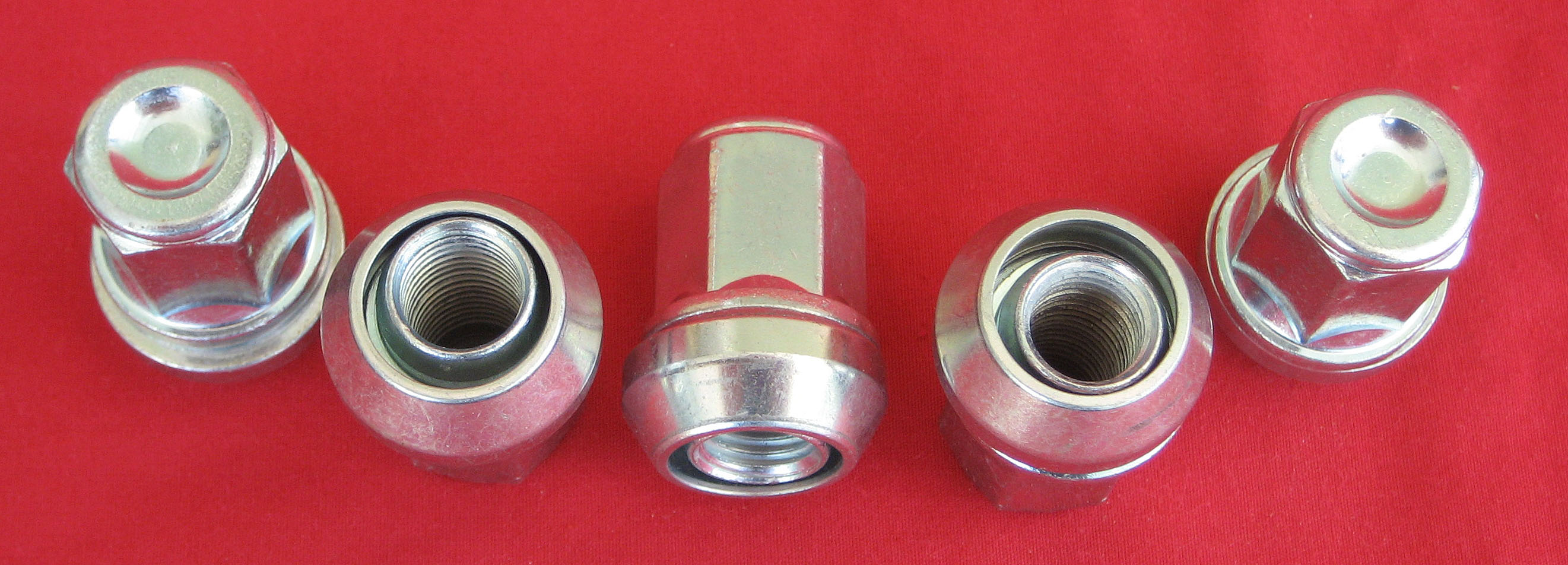

Variation Nut            AKA Wobble Nut

Closed Nut for PCD Variation Hex19 M12x1,5x34

Made in Italy        TUV certified

Set of 16 $112.00                      Set of 20 $140.00

                          Made in Italy        TUV certified

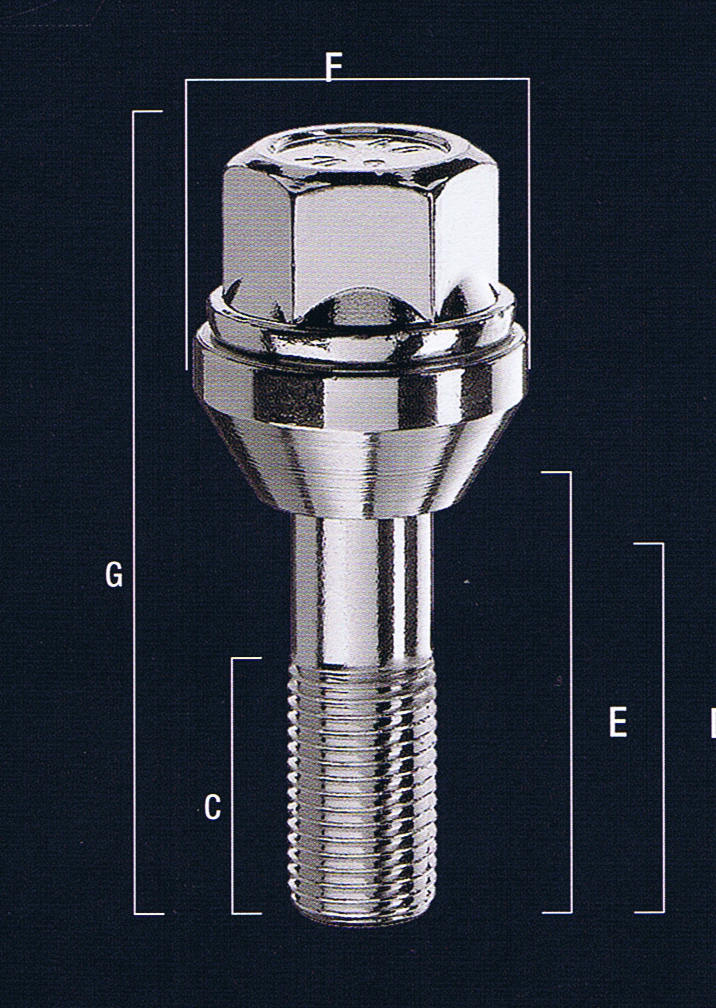

Variation Bolt            AKA Wobble Bolt                                                      Bolt for PCD Variation Hex17 M12x1,25 x 29.5

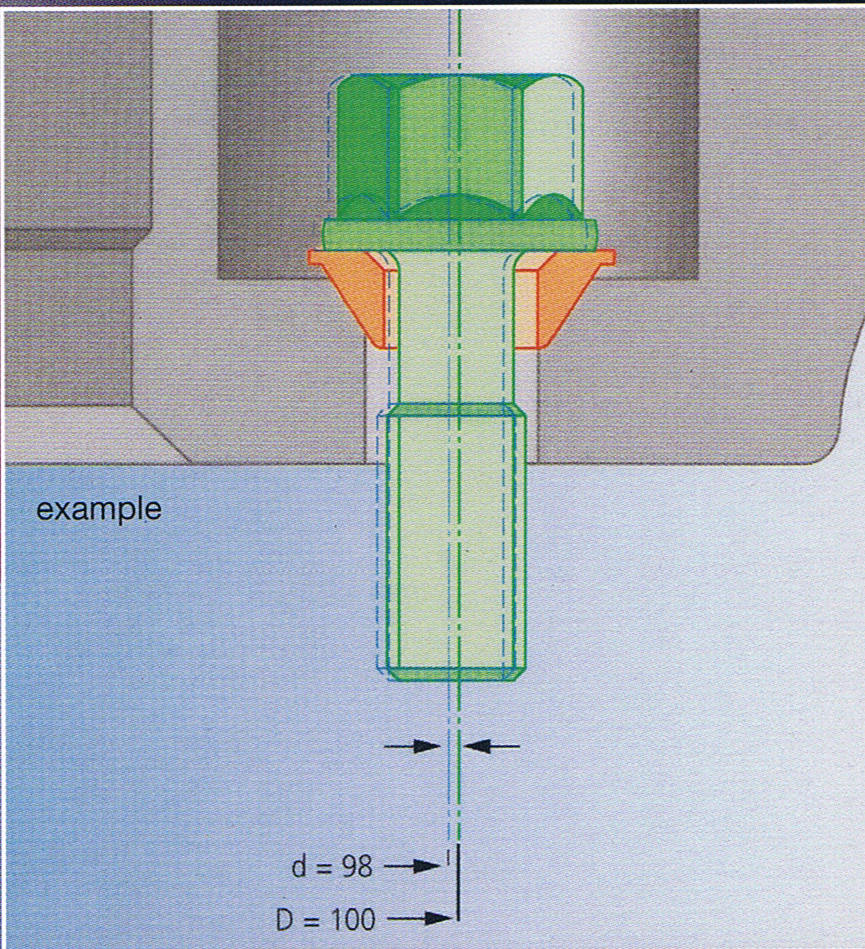

With this new item you can use one wheel with unified center bore for several application. This bolt is fitted with a mobile conical washer which keeps the bolt axis perpendicular to the car flange while allowing radial displacement and a consequent PCD variation.

Set of 16 $64.00                      Set of 20 $80.00

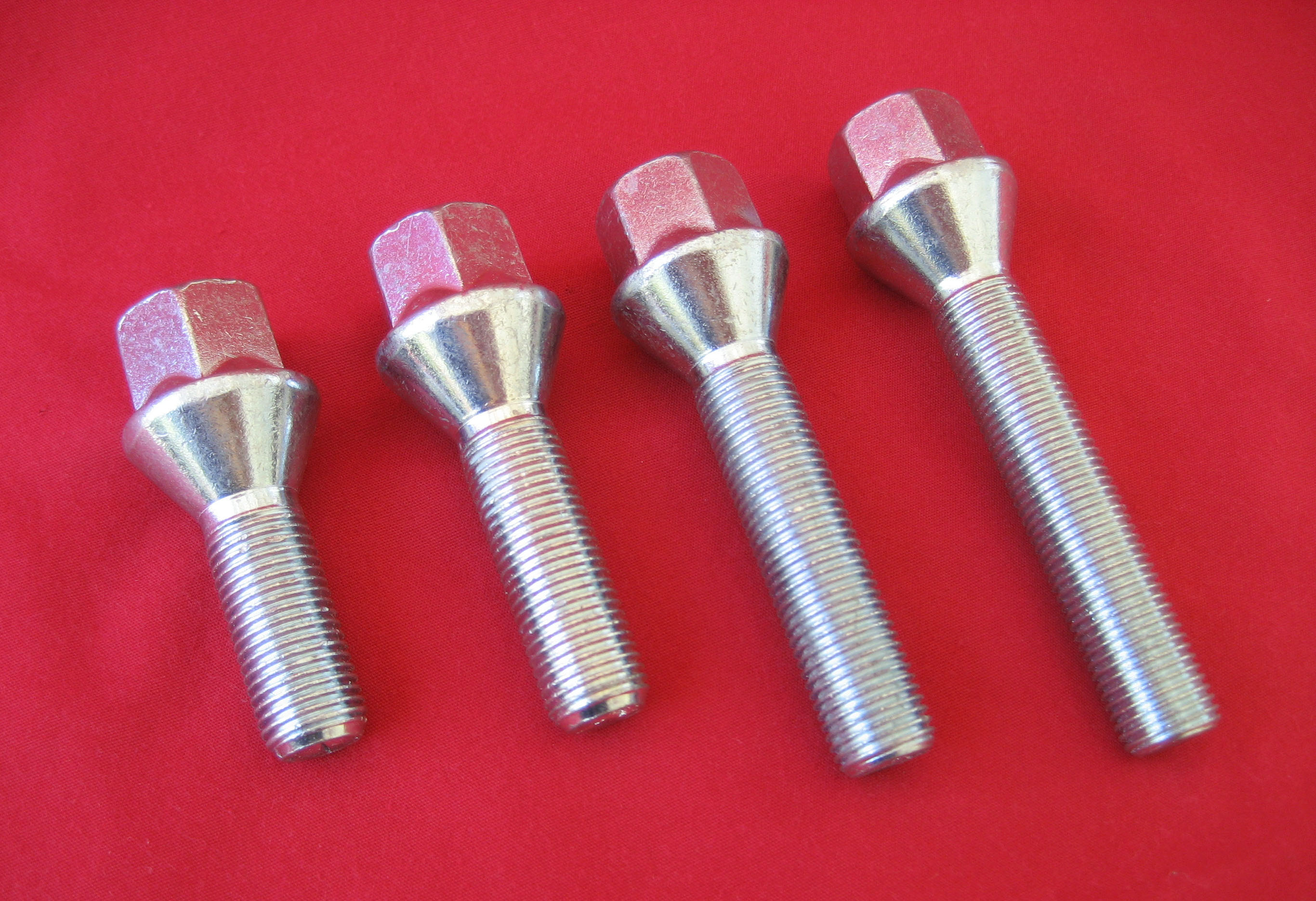

Lug Bolts for Alfa 164 and Fiat models                                       For use on aftermarket wheels.

17 mm Hex - M12x1.25 cone seat 60 *

Available in thread lengths 28, 36, 50, 60mm

Set of 16 $34.00

Set of 20 $42.00                           Made in Italy        TUV certified

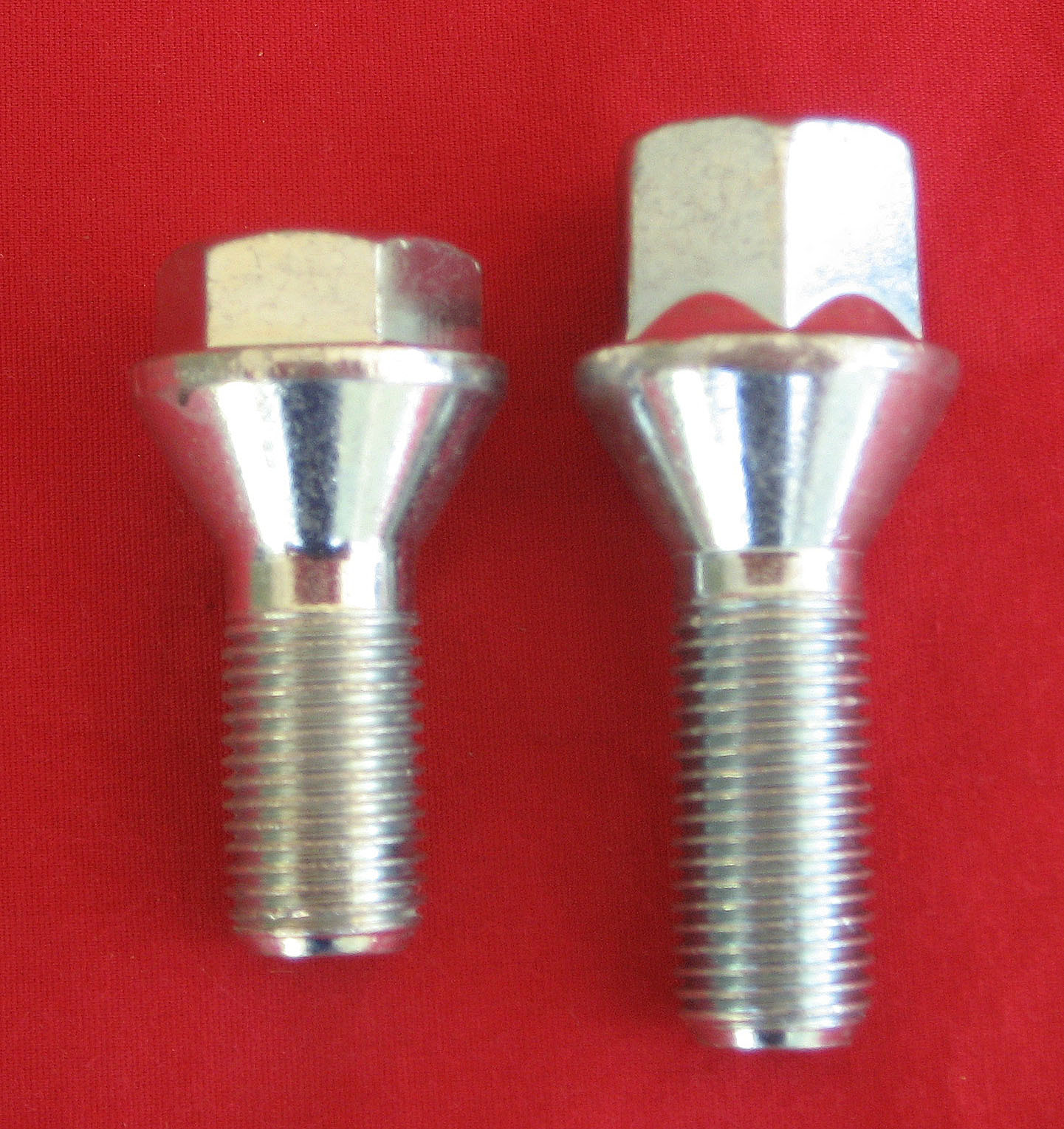

Short Hex Head   17 mm Hex - M12x1.25 cone seat 60 *

Ideal for under cap and wheel spacer application. Overall length 41 mm.            Thread length 22mm. Made in Italy        TUV certified

Set of 16 $48.00

Set of 20 $60.00

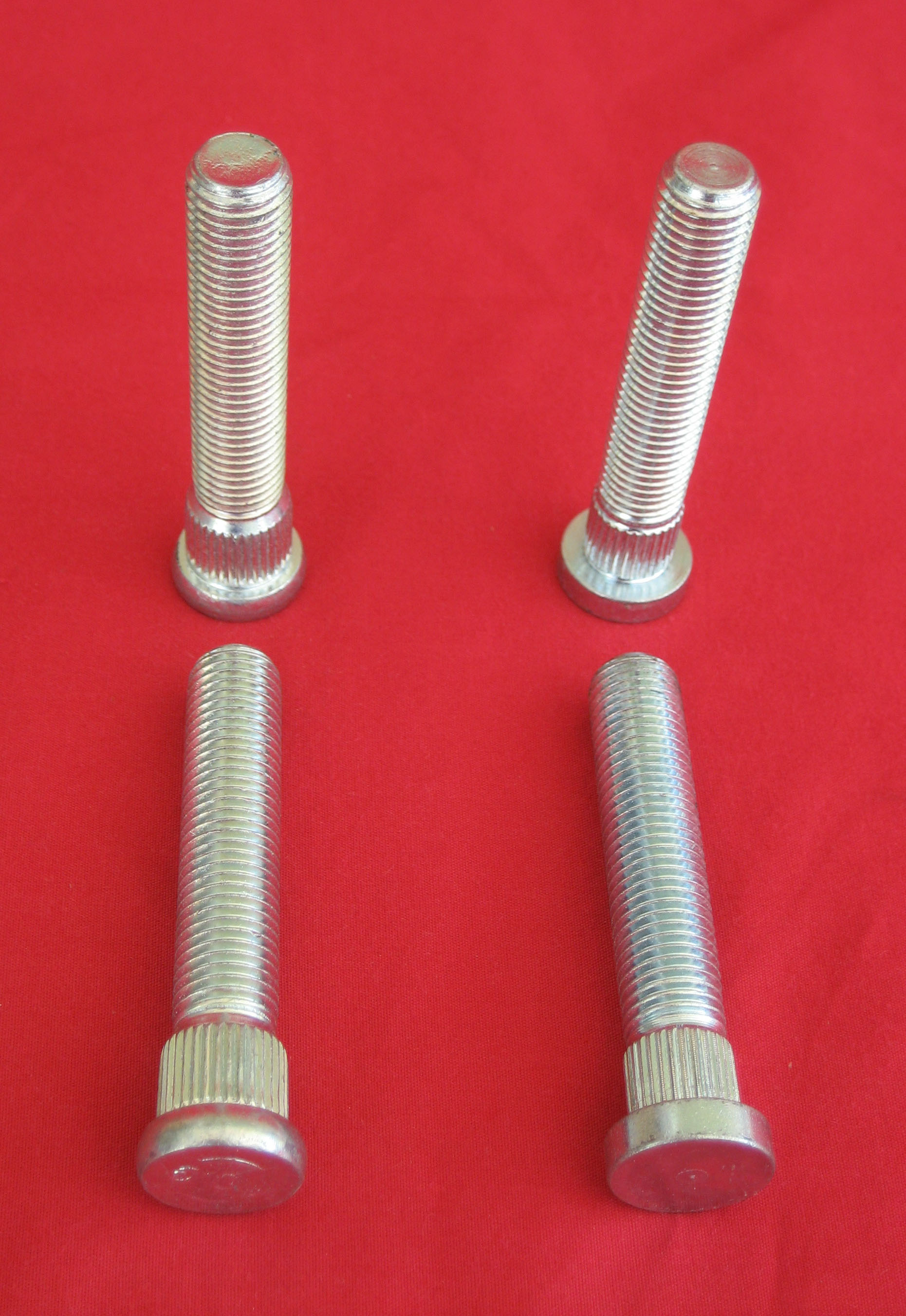

Spline Wheel Studs

Right hand thread

Wheel Stud Style    Press-in

Thread Size            12mm x 1.5 RH

Knurl Diameter        14mm

Knurl Length            12.5mm

Thread Length          52.5mm

Under head Length    65mm

Overall Length          70mm

Made in Italy       TUV certified

Set of 4 $16.00

Set of 5 $20.00





Spline Wheel Studs

Right hand thread

Wheel Stud Style    Press-in

Thread Size            12mm x 1.5 RH

Knurl Diameter        12mm

Knurl Length            12.5mm

Thread Length          52.5mm

Under head Length    65mm

Overall Length          70mm

Made in Italy       TUV certified

Set of 4 $16.00

Set of 5 $20.00

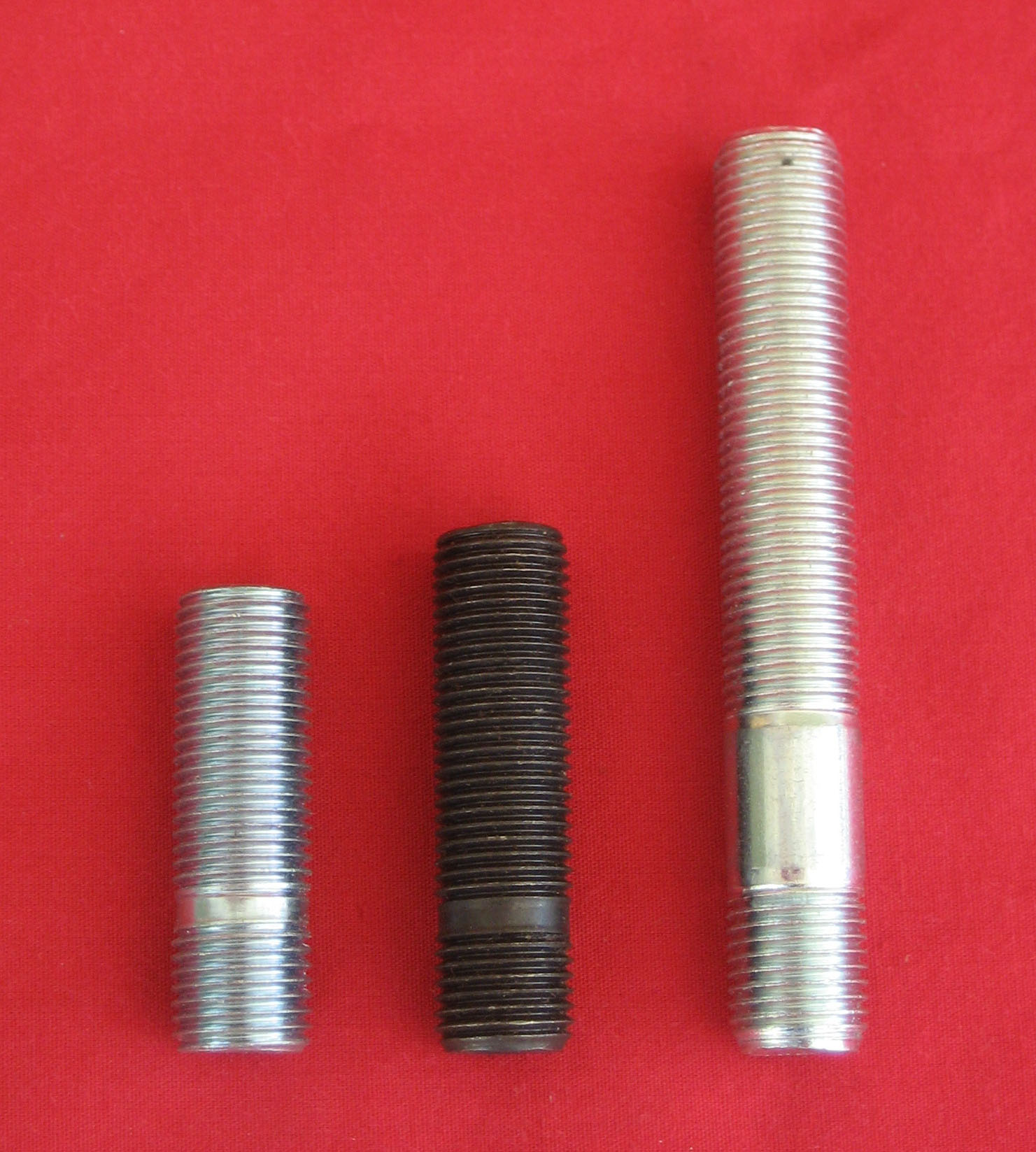

Wheel Studs for Alfa & Fiat

Convert your Afa 164 or Fiat with these studs and use lug nuts in place of wheel bolts. For uses with aftermarket wheels.

1.25 x 1.25, 1.00" thread length

1.25 x 1.25, 1 1/4" thread length

1.25 x 1.25, 2 1/2" thread length

Set of 20 $40.00

Set of 16 $32.00

NEW          2 1/2" Length

Made in Italy    TUV certified

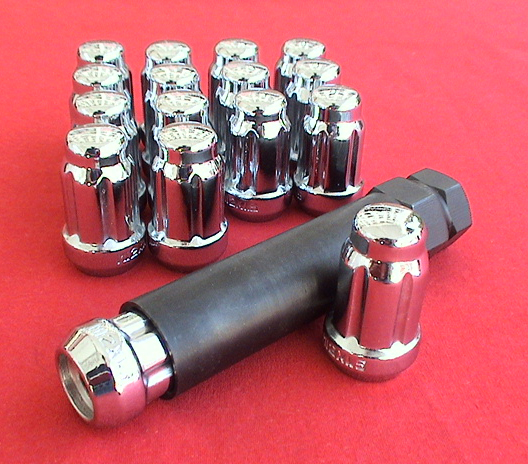

Small Diameter Tuner Lug Nuts

External pattern design produces better torque. Bulge design provides greater seating surface than traditional Tuner lug nuts. Key socket is made from Chrome Vanadium Steel for maximum strength.

Sizes available 12mm x 1.5,

 16 S/D Lug Nuts &  Key Socket  $44.00

20 S/D Lug Nuts &  Key Socket   $55.00

Save 20%  when purchased with a set of Serpent Wheels.

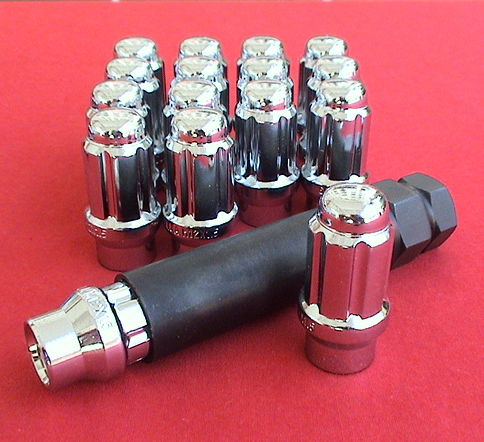

Small Diameter ET Tuner Lug Nuts

External pattern design produces better torque. Bulge design provides greater seating surface than traditional Tuner lug nuts. Key socket is made from Chrome Vanadium Steel for maximum strength.

Sizes available 12mm x 1.5,

 16 S/D ET Lug Nuts &  Key Socket  $44.00

20 S/D ET Lug Nuts &  Key Socket   $55.00

Save 20%  when purchased with a set of Serpent Wheels.

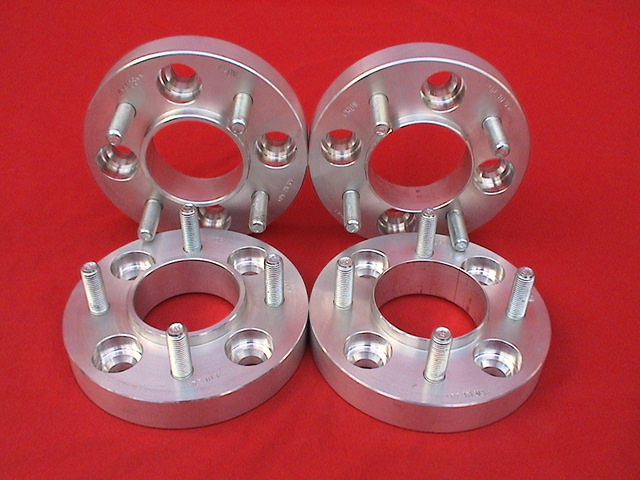

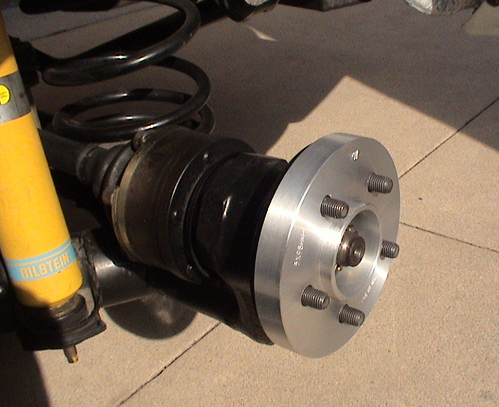

Serpent Autosport Spacer/Adapters                                     Custom Made (USA) to your exact hub and wheel centric requirements.  Price per pair.

.750”  (19.0mm)               $145.00

1.00”  (25.4mm)               $150.00

1.25"   (32mm)                  $160.00

1.50"   (38mm)                  $170.00

1.75"   (44.5mm)               $180.00

2.00"   (50.8mm)               $190.00

2.50"   (63.5mm)               $210.00

3.00"   (76.2mm)               $230.00

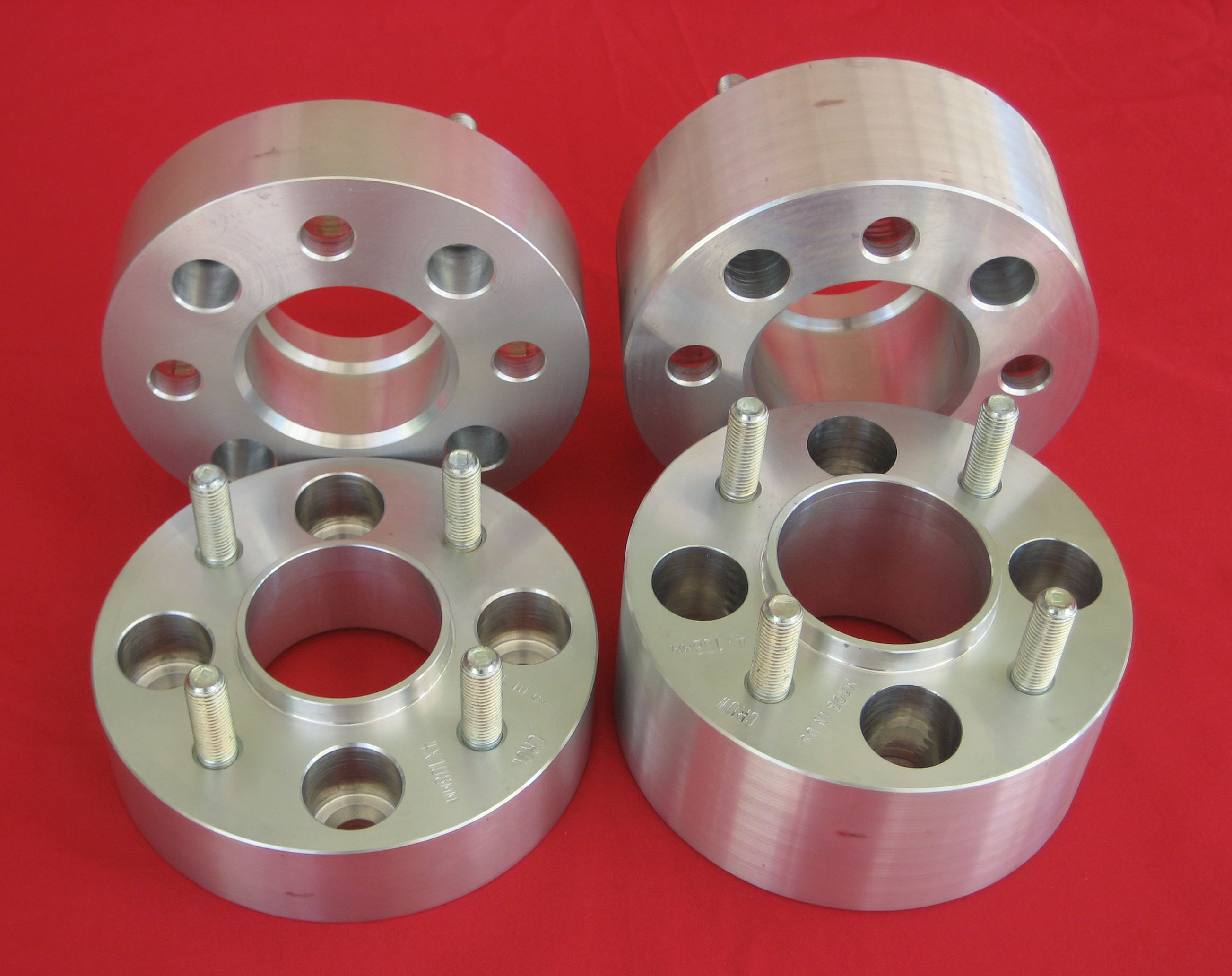

GTAM Spacer/Adapters. 38mm thick for the front. 63.5mm for the rear.

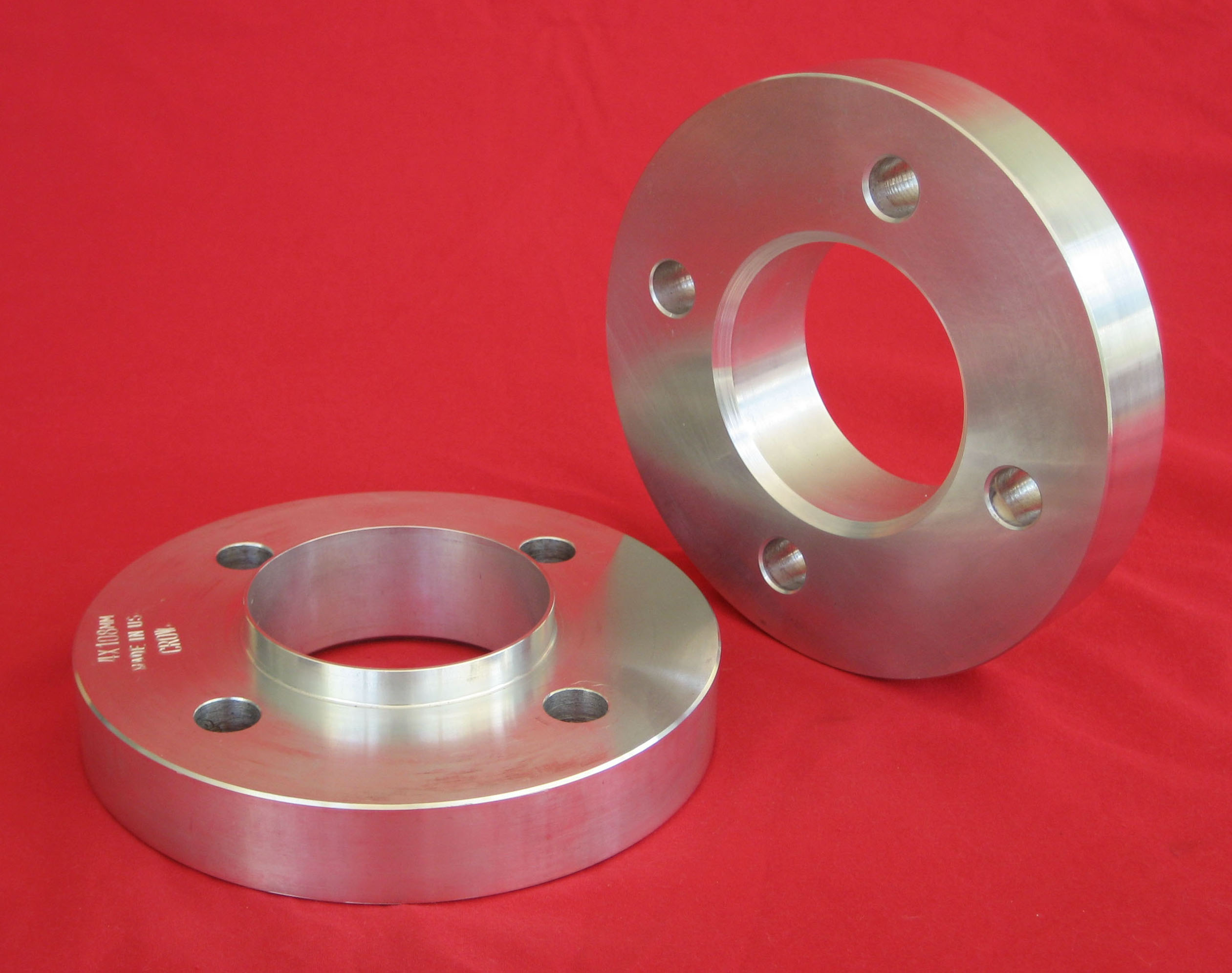

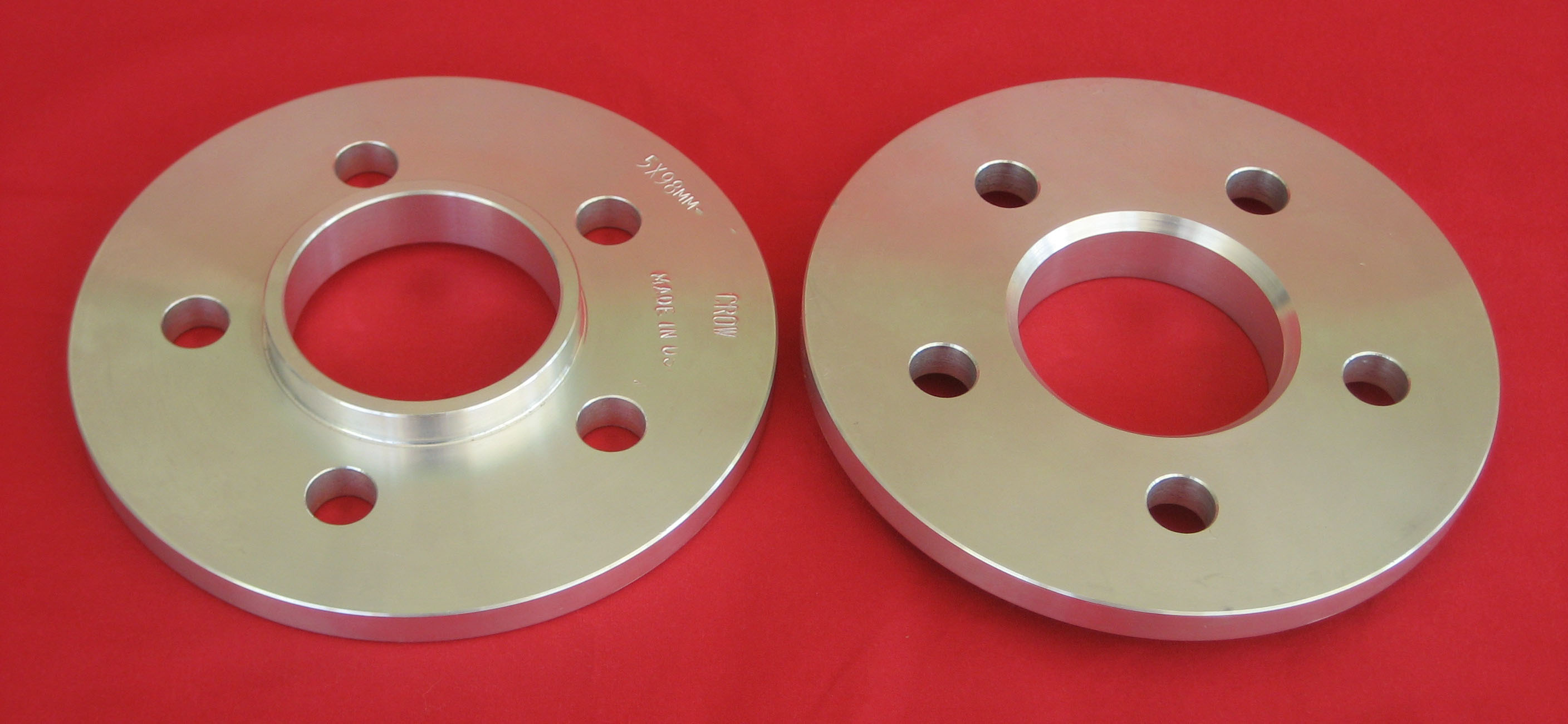

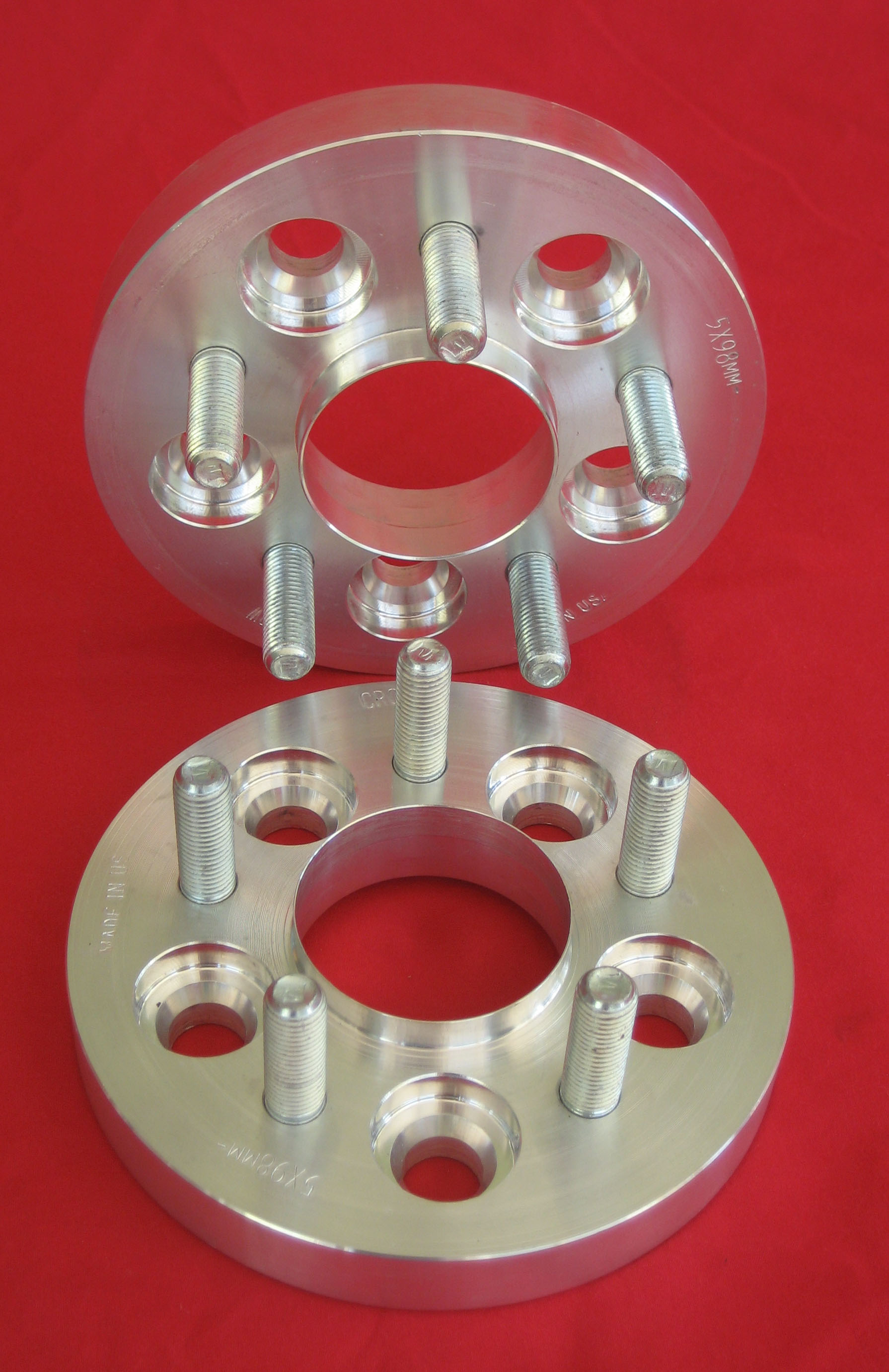

Spiders with the Serpent Autosport fender flares use the 25 mm spacers pictured. In the photo note the different center bore to fit hub centric, front and back on Alfa Spiders and GTVs.

Serpent Autosport Custom Made Wheel Spacers

Our hub and wheel centric Spacers are custom made from 6061aluminum alloy that is both light in weight and extremely strong. These spacers are up to 70 percent lighter than steel spacers.

.250"  (6.0mm)   up to  1.00”  (25.4mm)    $120.00 per pair

Serpent Autosport Custom Made Wheel Spacers

Our hub and wheel centric Spacers are custom made from 6061aluminum alloy that is both light in weight and extremely strong. These spacers are up to 70 percent lighter than steel spacers

Hub and wheel centric 20mm Spacer for use only with extended thread lug  nuts. Spacers can be made in any thickness 5mm up.

Longer vehicle hub studs and ET lug nuts may be required for proper wheel mounting.



 How to order Spacers & Adapters

Spacer/Adapters can be made to change lug pattern from standard Alfa           4x108 or 5x98 to match any wheel. Minimum thickness for adapters is 19mm.            Spacer minimum thickness 5mm.

When ordering customer will provide the following information.

Spacer/Adapter thickness _____________mm

Vehicle bolt pattern__________ to Wheel Bolt Pattern_________

Vehicle Hub Diameter________ to Wheel Centerbore _________

Vehicle Lug Thread Size__________

For more information see this article by Alfa Racer Peter Webb,  on the use of Spacer/Adapters.

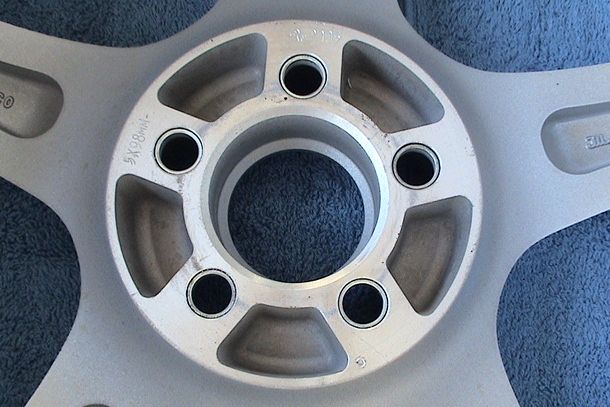

Wheels must have pockets in the mounting surface for adapters 20-30 mm thick to work.



Hub Centric Rings               Set of 4  $35.00

All sizes available, call with your size requirements.

 Hub Centric Rings

 High quality poly-carbon

 Wheel center bore  -  vehicle hub diameter

 67 o.d.  -   57.1 i.d.

 72  o.d.  -  57.1 i.d.

 73 o.d.  -   57.1 i.d.

 74 o.d.  -   57.1 i.d.

 67 o.d.  -   58.1 i.d.   Alfa 164/Fiat/ Lancia

 72  o.d.  -   58.1 i.d.  Alfa 164/Fiat/Lancia

 73 o.d.  -   58.1 i.d.   Alfa 164/Fiat/Lancia

 74 o.d.  -  58.6 i.d     Alfa GTV6/Milano/Maserati Biturbo

 67 o.d.  -   58.6 i.d.   Alfa GTV6/Milano/Maserati Biturbo

 72  o.d.  -   58.6 i.d.   Alfa GTV6/Milano/Maserati Biturbo

 73 o.d.  -   58.6 i.d.   Alfa GTV6/Milano/Maserati Biturbo

 74 o.d.  -  58.6 i.d     Alfa GTV6/Milano/Maserati Biturbo

 73 o.d.  -   64 i.d.

 Set of 4  $35.00

 Custom sizes available.   Call for details. (818) 848-3681





New!

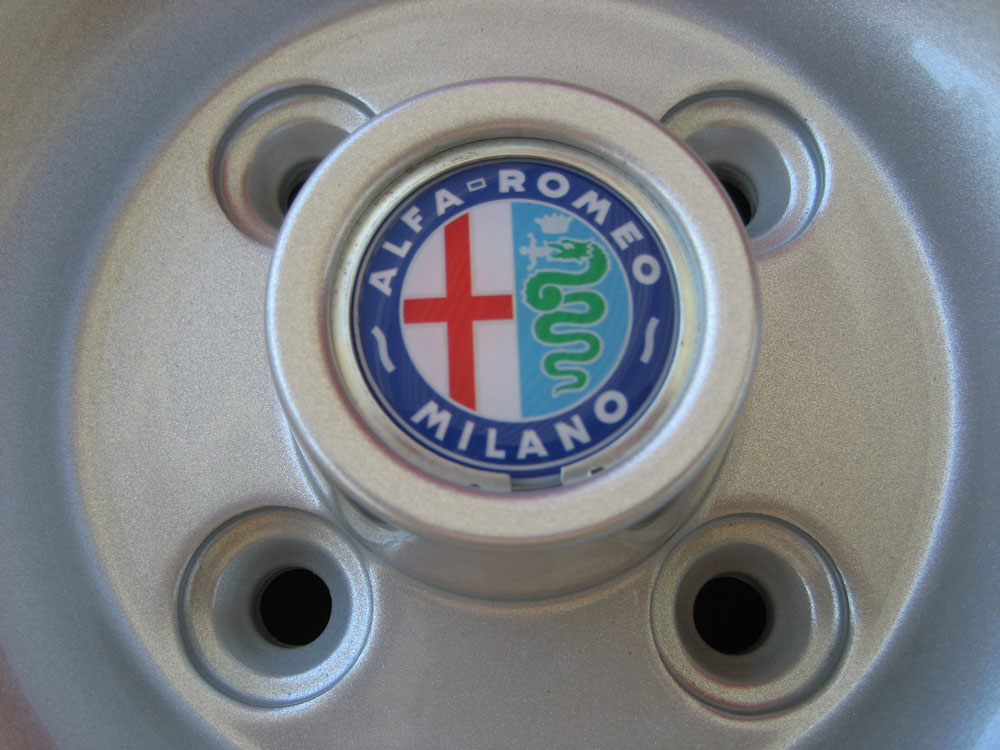

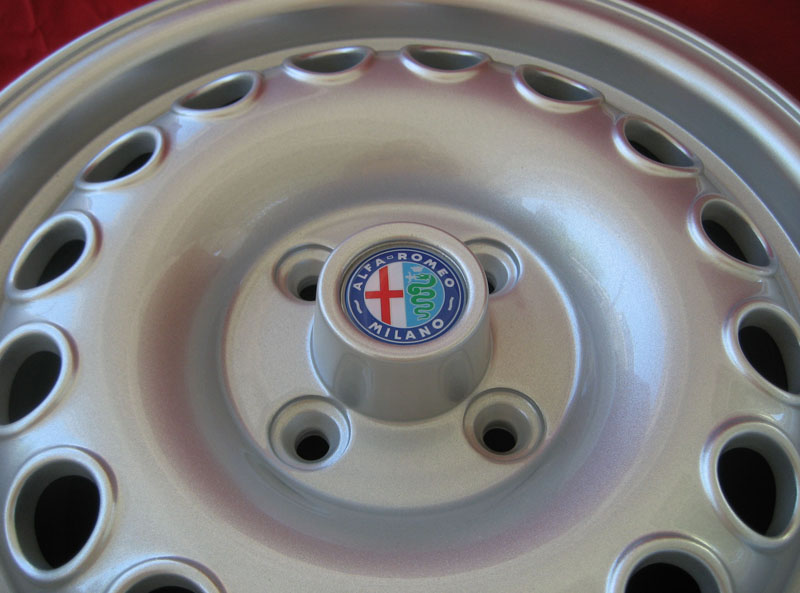

                                                                                                      Alfa Romeo Milano wheels badges

47 mm diameter badges fit factory wheels and are held in place

with factory circlip. Also fits GTA style wheels.

Set of 4  $49.00
